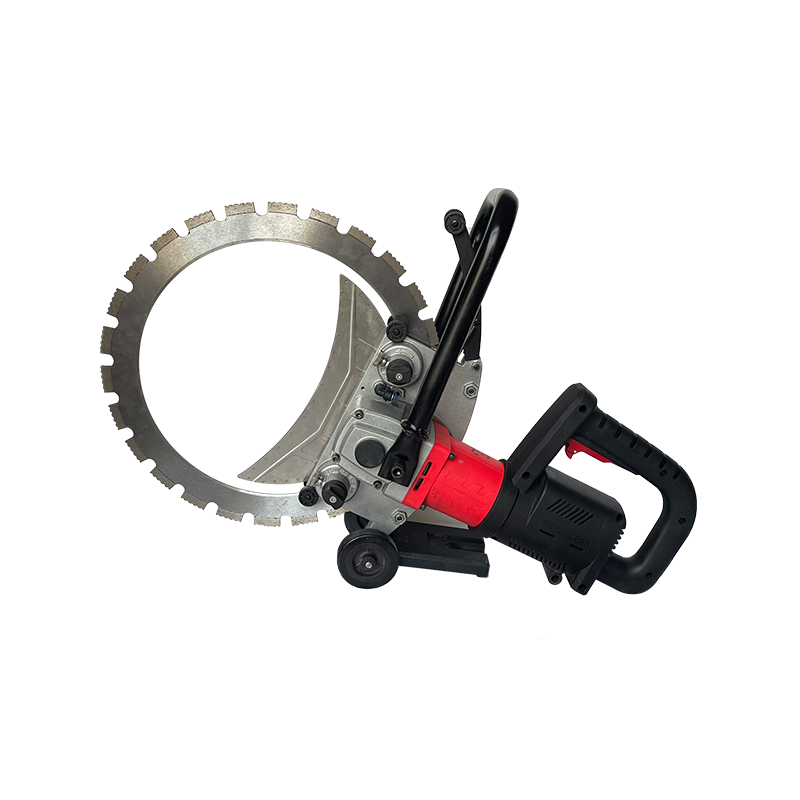

The ring saw produced by our company has the clamping wheel in the middle and the driving wheel in the middle, and their axes are perpendicular to each other. Guide wheels are installed on the upper and lower sides.
There are three types of ring saws on the market at present.
The first type uses gears to drive the saw blade.
Its advantages are: easy adjustment and no slipping.
Disadvantages are: low speed, slow efficiency and high noise.
The second type is driven by the driving wheel in the middle, and the clamping wheels are used to clamp and guide the saw blade on the upper and lower sides. Its advantages are: high speed and high efficiency.
Disadvantages are: troublesome to adjust, and only one size of saw blade can be installed.
The third type has the clamping wheel in the middle, and the clamping wheel also serves as the driving wheel. Guide wheels are installed on the upper and lower sides.
Its advantages are: the guide wheel does not need to be adjusted, and saw blades of different sizes can be installed. Disadvantages are: the contact surface between the clamping wheel and the saw blade is too small, which leads to easy burns and easy slipping of the saw blade.
The ring saw produced by our company has the clamping wheel in the middle and the driving wheel in the middle, and their axes are perpendicular to each other. Guide wheels are installed on the upper and lower sides.
Its advantages are: the guide wheel does not need to be adjusted, and different sizes of saw blades can be installed. Since the drive wheel drives the saw blade, the saw blade is not easy to slip and will not burn the saw blade. The saw blade has a high speed and fast cutting efficiency. The net weight of the machine is 9.9 kg (with a 410 saw blade). The disadvantage is: when changing saw blades of different sizes, the adjustment is a bit troublesome. (This problem does not exist for saw blades of the same size)
Parameter
Contact Us
Rated Power | 6000W |
Maximum Load Power | 9000W |
Voltage | 220V |
Frequency | 50/60Hz |
Saw Blade Diameter | φ394-600mm |
Depth of Cut | 279-480mm |
Rotate Speed | 1600r/min-2700r/min |
Net Weight (with 410mm blade) | 9.9kg |
Gross Weight (with blade, water pump, packaging) | 14.2kg |
Package Dimensions (Single Unit) | 810×590×300mm |
