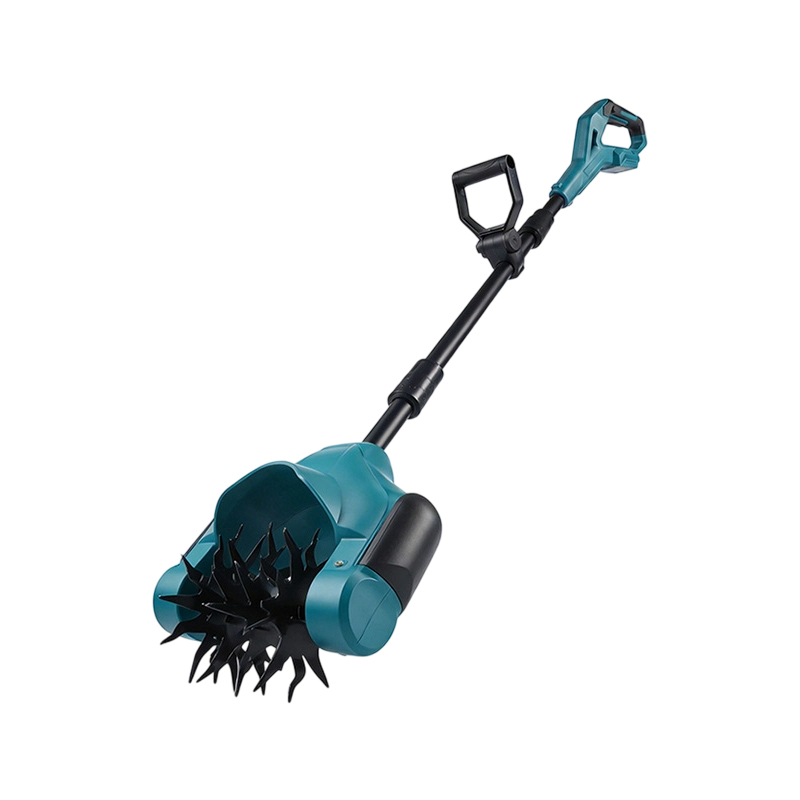

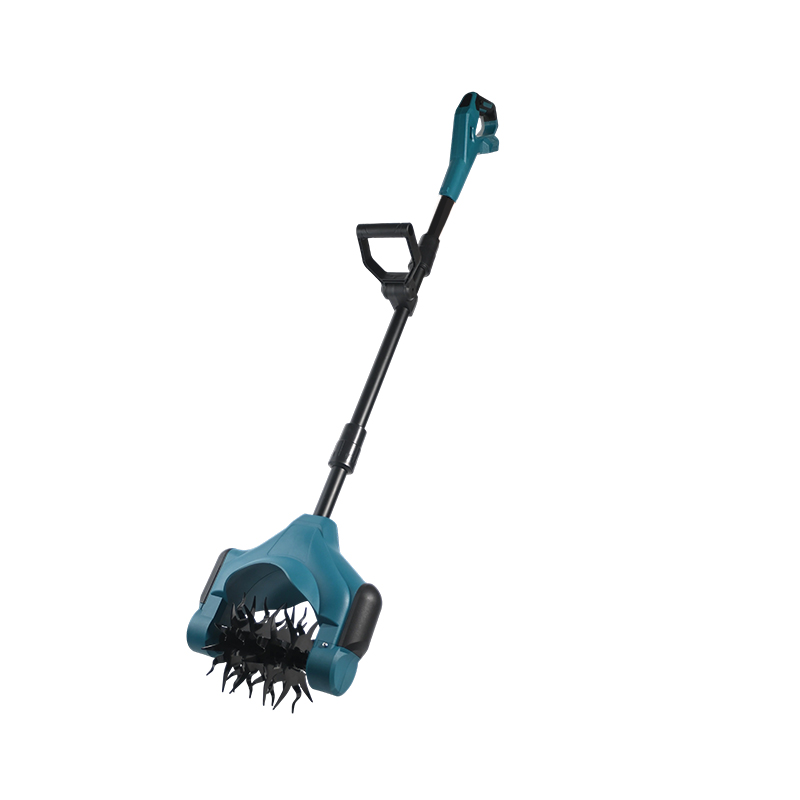

This no-till ridgeless micro-tiller offers efficient soil preparation without tilling ridges. Lightweight, easy to operate, and low vibration. Protects soil structure, saves labo.
1. The tilling head features a centralized four-blade configuration—a design distinct from the left-and-right blade layouts found on other micro-tillers currently on the market. While other micro-tillers typically leave an uncultivated ridge in the center of the soil after tilling (necessitating a second pass), our micro-tiller eliminates this issue.
2. It is primarily designed for the leveling and tilling of soil in courtyards, small vegetable patches, gardens, and similar areas.
Parameter
Contact Us
|
Factory Packaging & Accessory List
|
Carton packaging Main unit + Pearl cotton + Kraft paper inner box
|
|
Dimensions & Weight (Single unit per package)
|
Package size: 69*36.5*20cm Net weight of bare unit: 5.5kg
|
|
Rated Power
|
630W
|
|
Load Power
|
27-35A
|
|
No-load Current
|
2.3-3A (Max)
|
|
Load Current
|
18-27A
|
|
Protection Current
|
35A (max)
|
|
Motor Model (Brushed / Brushless)
|
4820 Integrated type
|
|
Rotating Speed
|
800 OPM
|
|
Main Product Material
|
PA6-GF30
|
|
Standard Color (Customizable for any order quantity)
|
3155C (Blue)
|
|
Minimum Order Quantity for Color Customization
|
500 pcs
|
|
MOQ for Custom Packaging (Price fluctuation applicable or not)
|
Carton + Pearl cotton packaging; MOQ: 500 pcs
|
|
Product Certifications Available (e.g. FCC, CE)
|
None at present, under application
|
Machine dimensions: 150 x 36 x 18 cm
Tine diameter: 33 mm
Working width: 195 mm, Working depth: 70 mm
Length of a single tine (excluding the head): 120 cm
