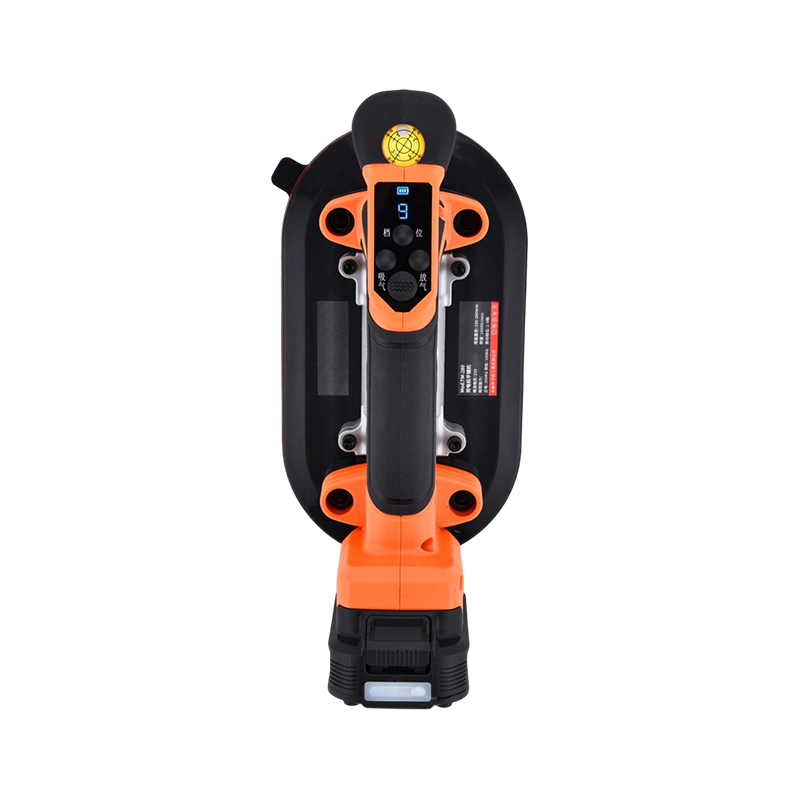

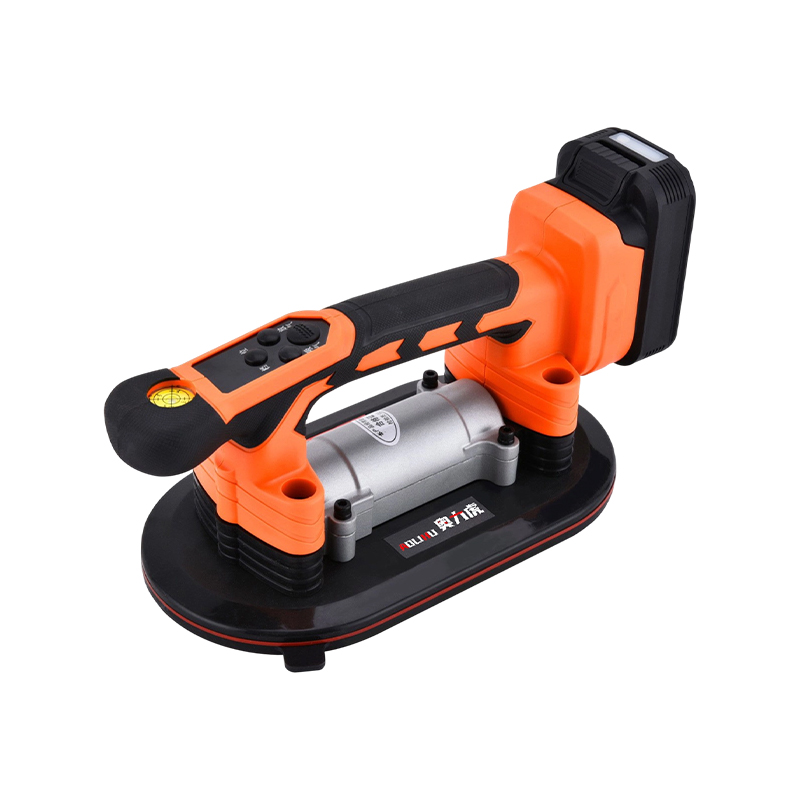

This wearable tile laying machine features anti-vibration design, reducing wrist fatigue. Lightweight and easy to operate, it ensures stable tile adhesion and high construction efficiency.
1. Suction Mode: Designed for handling objects, offering a vertical suction force of 200 kg and a lateral suction force of 100 kg. It is capable of securely gripping any object with a smooth surface.
2. Vibration Mode: Ideal for tile installation; the vibration action evenly distributes the mortar to ensure a tighter bond, thereby minimizing issues with hollow spots along the tile edges. Features 9 adjustable intensity levels, including a continuous cycle mode.
3. Auto Start/Stop: The device can be powered on simply by pressing any button. To conserve battery power, it automatically shuts down after 16 seconds of inactivity if not manually switched off.
4. Shock Absorption: Equipped with 5 shock-absorbing springs—arranged in a configuration of 3 at the front and 2 at the rear—to effectively dampen vibrations and prevent wrist strain.
Parameter
Contact Us
|
Factory Model No.
|
TM-280
|
|
Factory Packaging & Accessory List
|
Plastic case, instruction manual, wool pad (Battery and charger are sold separately)
|
|
Product Dimensions
|
Single unit package: 38.517.528.5 (Plastic case + kraft paper) Full case package: 86.53929 (5 units per plastic case)
|
|
Maximum Load Power
|
350W
|
|
Rated Current
|
5A
|
|
Maximum Load Current
|
15A
|
|
Motor Model
|
775
|
|
Main Product Materials
|
Housing: Reinforced nylon Suction cup: Rubber Suction cup frame: Aluminum alloy Motor cover: Aluminum alloy
|
|
Standard Factory Color
|
Handle: 021C
|
|
Minimum MOQ for Custom Color
|
600 units (lead time: approx. 30 days)
|
|
Ex-factory Packaging Method
|
Plastic case with outer kraft paper carton
|
Optimal working area: 90 x 180 cm tiles
9-speed settings Suction capacity: 200 kg Side suction capacity: 100 kg

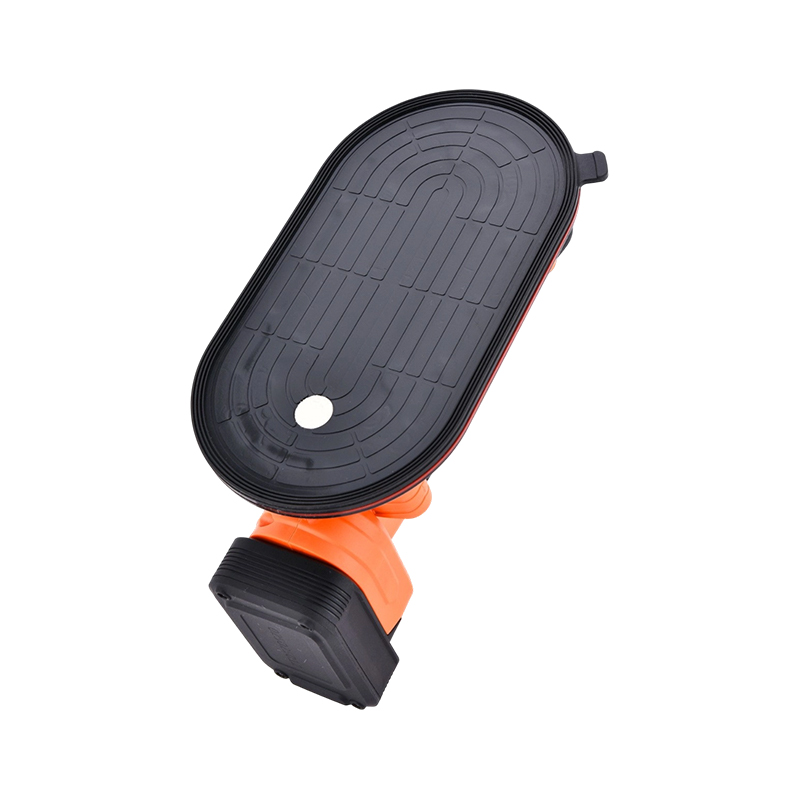

Suction cup area: 15 x 28 cm
